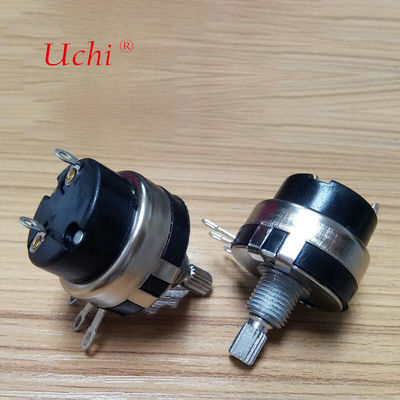

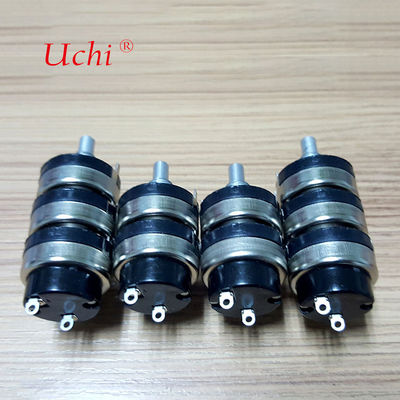

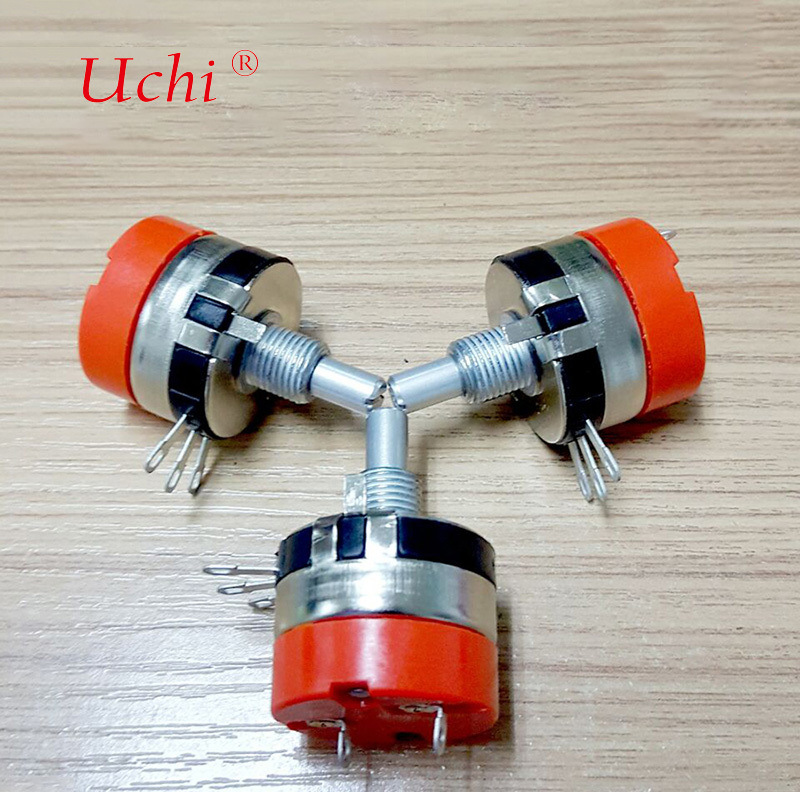

WTH118 Waterproof Improved Precision Potentiometer With Switch
Produktdetails:
| Herkunftsort: | Dongguan ， Guangdong, China |
| Markenname: | Uchi |
| Zertifizierung: | SMC |
| Modellnummer: | WTH118 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 100pcs |
|---|---|
| Preis: | Verhandlungsfähig |
| Zahlungsbedingungen: | T/T, Paypal, Western Union, MoneyGram |
| Versorgungsmaterial-Fähigkeit: | 50000000pcs pro Monat |
|
Detailinformationen |
|||
| Gesamtwiderstandsbereich: | 50 Ω - 2 MΩ (Fehler ±20 %) | Leistungsbewertung: | B-Konus 0,5 W, andere 0,25 W |
|---|---|---|---|
| Restwiderstand: | Klemme 1-2/2-3 ≤20Ω MAX | Maximale Betriebsspannung: | Linearkegel BAC 500V, andere Kegel AC 250V |
| Schiebergeräusch (siehe JIS): | ≤47mV MAX | Isolationsresistenz: | ≥100 MΩ MIN bei DC 500 Volt |
| Spannungsfestigkeit (Klemmengehäuse): | 500 V, Wechselstrom (eine Minute) | Leistung: | 0.05W |
| Gesamtdrehwinkel: | 300°±10° | Effektive elektrische Reise: | 230°±3° |
| Winkel wechseln: | 50°±10° | Wasserdichte Note: | IP67 |
| Hervorheben: | waterproof precision potentiometer with switch,improved precision potentiometer waterproof,potentiometer with switch waterproof |
||
Produkt-Beschreibung
- Overall resistance range: 50Ω - 2MΩ (Error ±20%)
- Power rating: B Taper 0.5W, Others 0.25W
- Residual resistance: Terminal 1-2/2-3 ≤20Ω MAX
- Max operation voltage: Linear taper BAC 500V, other tapers AC 250V
- Slider noise (Refer to JIS): ≤47mV MAX
- Insulation resistance: ≥100MΩ MIN at D.C 500 volts
- Withstanding voltage (Terminal-case): 500V, AC (one minute)
| Taper | Test point position | V1-2/V1-3 (%) | V2-3/V1-3 (%) |
|---|---|---|---|
| A | 180° | 10-30% | |
| B | 150° | 40-60% | |
| C | *180° | 10-30% | |
| D | 150° | 2-15% | |
| W | 90±5° | 5-15% | |
| 150° | 40-60% | ||
| 210±5° | 85-95% |
- Overall rotational angle: 300°±10°
- Effective electrical travel: 230°±3°
- Switch angle: 50°±10°
- Waterproof grade: IP67
- Operation torque: 100gf.cm-200gf.cm (rotational speed 60°/1 sec)
- Rotational life: More than 100,000 cycles
- All items meet or exceed JIS C6443 standards
- Operating temperature: -10℃ to +60℃
- Storage temperature: -30℃ to +70℃
