Produktdetails:
| Herkunftsort: | Dongguan China |
| Markenname: | UCHI |
| Zertifizierung: | Completed |
| Modellnummer: | BLDC 14850 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1000 Prozent |
|---|---|
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | Standard |
| Lieferzeit: | 5-7 Tage |
| Zahlungsbedingungen: | T/T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 5000 Stück |
|
Detailinformationen |
|||
| Keine Lastsspannung: | 47.97v | Geschwindigkeit bei EFF Max: | 388.1RPM |
|---|---|---|---|
| Zertifikat: | 3c | Ausgangsleistung bei Schmollmax: | 864.8W |
| Drehen Sie maximales: | 23.61Mn.M | ||
| Hervorheben: | 14850 BLDC Brushless Motors,Precise Control BLDC Brushless Motors,BLDC Brushless Motors |
||
Produkt-Beschreibung
BLDC 14850 Brushless Motors With Precise Control Low Noise And EMI
Typical Applications:
1. Home Application
2. Business Equipment

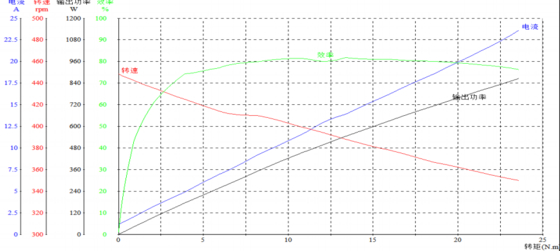

Brushless Motor Technical Data
| Point | VOLTAGE | CURRENT | INPUT POWER | SPEED | TORQUE | OUTPUT POWER | EFFICIENCY | TIME |
| V | A | W | RPM | mN.m | W | % | S | |
| NO LOAD | 47.97 | 1.124 | 53.92 | 448.7 | 0.02 | 1.127 | 2.1 | 0 |
| EFF MAX | 48 | 13.88 | 666.2 | 388.1 | 13.39 | 544.1 | 81.7 | 44.45 |
| POUT MAX | 47.98 | 23.62 | 1133 | 349.8 | 23.61 | 864.8 | 76.3 | 63.77 |
| TORQUE MAX | 47.98 | 23.62 | 1133 | 349.8 | 23.61 | 864.8 | 76.3 | 63.77 |
| END | 47.98 | 23.62 | 1133 | 349.8 | 23.61 | 864.8 | 76.3 | 63.77 |
Features:
1. Precise Control: BLDC motors offer nearly instantaneous control of speed and torque. They can also maintain a holding torque when stationary, which is useful in applications requiring precise motion control.
2. Low Noise and EMI: BLDC motors produce less noise and electromagnetic interference (EMI) compared to brushed motors. This makes them suitable for applications where minimal electrical noise is required.
