BLDC 75100 Brushless Motors For Home Application And Business Equipment
Produktdetails:
| Herkunftsort: | Dongguan China |
| Markenname: | UCHI |
| Zertifizierung: | Completed |
| Modellnummer: | BLDC 75100 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1000 Prozent |
|---|---|
| Preis: | Verhandlungsfähig |
| Verpackung Informationen: | Standard |
| Lieferzeit: | 5-7 Tage |
| Zahlungsbedingungen: | T/T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 5000 Stück |
|
Detailinformationen |
|||
| Keine Lastsspannung: | 220,4 V | Geschwindigkeit bei EFF Max: | 1489 UPM |
|---|---|---|---|
| Zertifikat: | 3c | Schmollen max: | 398.9W |
| Drehen Sie maximales: | 2,607 Mio. m | ||
| Hervorheben: | Business Equipment BLDC Brushless Motors,75100 BLDC Brushless Motors |
||
Produkt-Beschreibung
BLDC 75100 Brushless Motors For Home Application And Business Equipment
Typical Applications:
1. Home Application
2. Business Equipment

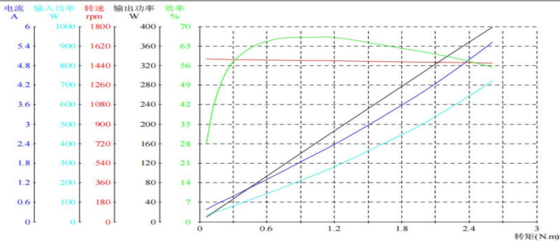

Brushless Motor Technical Data
| Point | VOLTAGE | CURRENT | INPUT POWER | SPEED | TORQUE | OUTPUT POWER | EFFICIENCY | POWER FACTOR | FREQUENCY | TIME |
| V | A | W | RPM | mN.m | W | % | Hz | S | ||
| NO LOAD | 220.4 | 0.377 | 34.89 | 1502 | 0.064 | 10.06 | 28.8 | 0.42 | 50.02 | 0 |
| EFF MAX | 200.2 | 1.589 | 178 | 1489 | 0.763 | 118.8 | 66.8 | 0.509 | 50.01 | 19.11 |
| POUT MAX | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
| TORQUE MAX | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
| END | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
Features:
- High Efficiency: BLDC motors are highly efficient because they eliminate the mechanical energy loss due to friction in brushed motors. This efficiency is particularly advantageous in battery-powered applications where energy conservation is crucial.
- Long Lifespan: The absence of brushes means there is no brush and commutator erosion, which significantly extends the motor's lifespan. The lifespan is usually limited only by the bearings.
- High Power-to-Weight Ratio: BLDC motors can deliver high power relative to their size and weight. This makes them ideal for applications where weight and space are critical, such as in model aircraft and drones.
